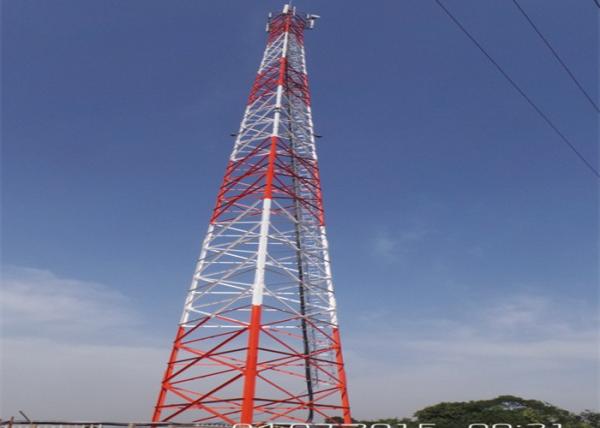

4-legged tubular communication tower
Tubular communication tower
4-legged tubular communication towers are usually built at various angles, ranging in height from 45m to 106m. These structures are carefully designed and manufactured to withstand the heavy load caused by the connection of the microwave antenna and the installation of the sector antenna. In addition, these towers can also accommodate various accessories, including platforms, antenna brackets, lighting systems, ladders, safety cages, cable ladders, public installation poles, etc. The suggested height of this structure is 45m, 60m, 91m and 106m, suitable for single/multiple use
Material: Steel
Spare parts: parts for connection or installation
Height: 5-80m
Earthquake intensity 8°
Optimum temperature -35℃ to 45℃
Number of work and rest platforms 1-3 PCS
Antenna bracket 3-18 PCS
Microwave tray 3-18 PCS
Nuts and bolts class 8.8
Vertical deviation<1/1000
Anti-corrosion treatment is used for hot-dip galvanizing/painting of all tower steel components to ensure that it will not rust for 50 years
Main function: Support signal transmission, support signal transmission antenna
| tower type |
telecommunication tower |
| tower application |
support antennas for telecommunications and broadcasting |
| related towers |
angle steel tower, steel tube pole |
| raw material |
angle lattice steel, steel tube, monopole |
| coating |
hot dip galvanized |
| process |
welding, punching holes, slipping and flanged connection |
The main types of telecommunication towers and related accessories:
Self-service tower
Gay Mast Tower
Monopole tower
MW mount
GSM antenna bracket
Features:
1. The single tube tower is composed of a single tube and accessories, and the main material is generally made of steel plate bending.
2. The cross-section of the tower is round or polygonal, connected by internal flanges, external flanges or plug-ins.
3. Ladder and rest platform can be installed in the tower, and communication equipment can also be safely installed in it.
4. According to the customer's choice, the ladder can be placed inside or outside.
5. Using international advanced design concepts and calculation methods, the tower slope can be adjusted according to geological and climatic conditions.
6. Convenient and safe installation, small footprint and easy selection.
Company advantage
Excellent products and scientific management are the foundation of the company. Technology, equipment and strong power are the foundation of the company's development. It has a first-class tower automatic production line and advanced processing technology, and is equipped with a reasonable physics laboratory and universal testing. Machines, five chemical element testers, spectrum analyzers, ultrasonic flaw detectors, coating thickness testers and other testing equipment, from raw materials to finished products, have a complete quality inspection system.
